Organic Chemistry Homework Question

Question 1

For the reactions sequence shown below, draw the structures of compounds A, B, C, D and E and name the reactions i, ii, iii, iv, v and vi. Using arrows show how the reaction takes place. A detailed mechanism and stereochemistry are not necessary.

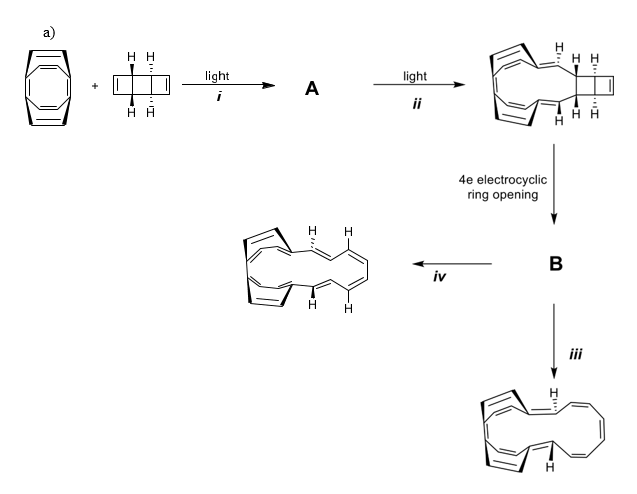

 a)

b)

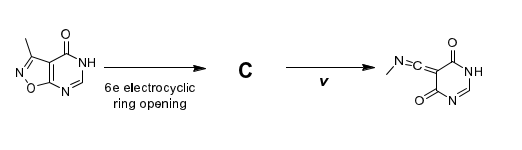

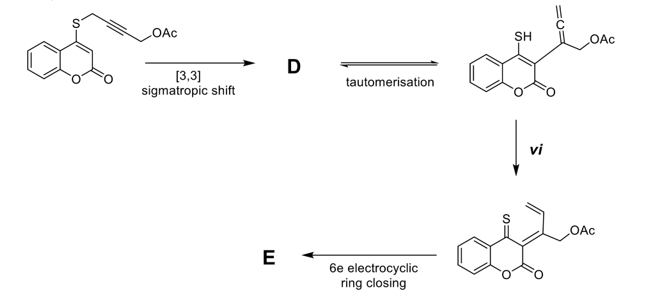

c)

 Question 2

Upon heating compound F undergoes either a 4-atom tether intramolecular hetreo-Diels-Alder or 4 atoms tether intramolecular Diels-Alder leading to compounds H and G respectively.

a) Draw the structures and compounds G and H.

(5 marks)

b) For the formation of one of the compounds (either H or G) propose a detailed mechanism, showing the formation of all the possible isomers.

(12 marks)
